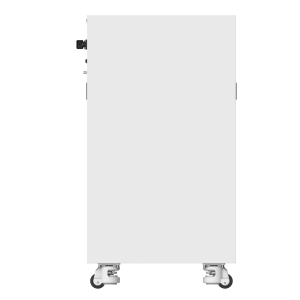

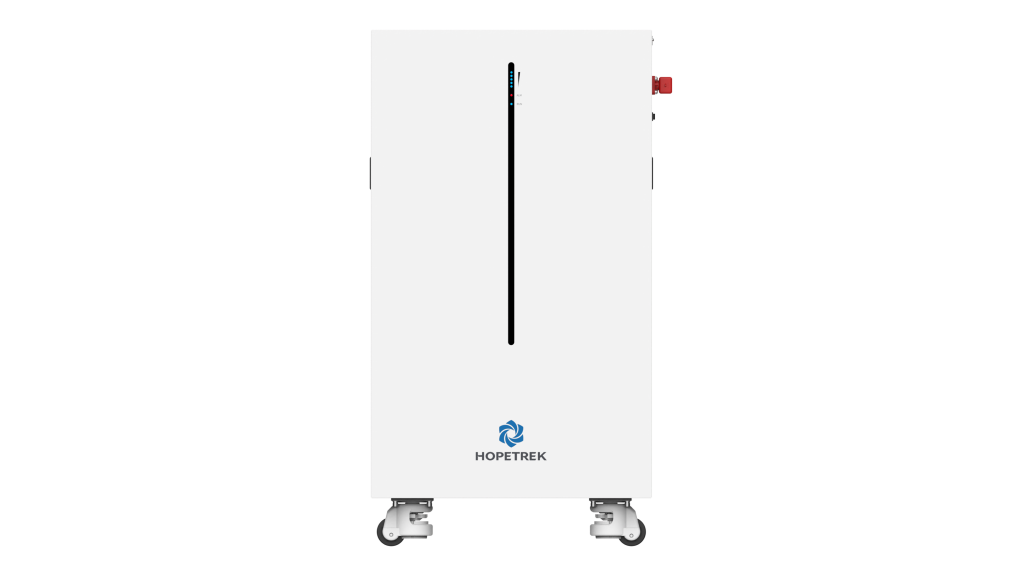

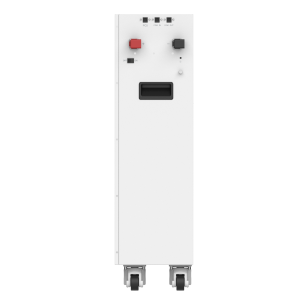

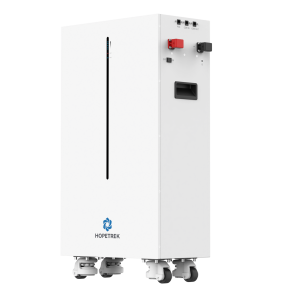

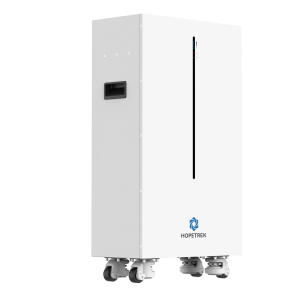

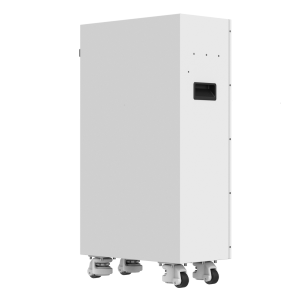

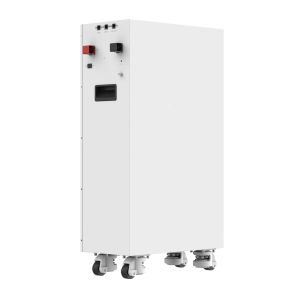

16.08kWh Low-Voltage LiFePO₄ Battery System (ESS-LB16-W01)
The HopeTrek ESS-LB16-W01 is a 16.08kWh low-voltage LiFePO₄ battery system with 314Ah capacity, approximately 14.4kWh usable energy and an intelligent Battery Management System. It provides at least 8,000 cycles, up to 200A discharge current, CAN and RS485 communication, and expansion support for up to 16 battery packs in parallel.
ESTIMATED PRICE
Original price was: ₨ 720,000.₨ 612,000Current price is: ₨ 612,000.
/ Unit
SELECT QUANTITY
Product Information
High-Capacity Energy Storage for Reliable Everyday Power
The HopeTrek ESS-LB16-W01 is a high-capacity 16.08kWh low-voltage LiFePO₄ battery system designed for residential and commercial energy storage. Its intelligent Battery Management System monitors charging, discharging, current and individual cell conditions to provide safe and stable performance. A modular architecture supports parallel expansion as energy requirements increase.
| 16.08kWh Energy Capacity | Provides 16.08kWh nominal energy and approximately 14.4kWh usable energy at 90% depth of discharge. |
| Safe LiFePO₄ Chemistry | Lithium iron phosphate battery chemistry delivers stable performance and enhanced operational safety. |
| Intelligent BMS | The intelligent BMS manages charge, discharge and cell balancing while monitoring important system conditions. |
| High Current Performance | Supports 160A rated charging and discharging with a maximum discharge current of 200A. |
| Extended Cycle Life | Delivers at least 8,000 cycles under the specified test conditions at 90% depth of discharge. |
| Modular Expansion | Supports up to 16 battery packs connected in parallel for increased energy capacity and power. |
| Inverter Communication | CAN and RS485 communication support coordinated operation with approved compatible inverter systems. |
| Clear LED Indicators | SOC, running and alarm indicators provide clear information about battery level and operating status. |
| Convenient Mobility | Integrated wheels assist with positioning while adjustable support feet provide stability after installation. |
| Indoor Installation | The IP20-rated system is designed for dry indoor locations away from water and moisture. |
| Wide Operating Range | Supports discharge operation from -30°C to 55°C and installation at altitudes up to 4,000 metres. |
PDF
↓
Product Datasheet
Features and technical specifications
PDF
↓
Quick Installation Guide
Installation and initial setup instructions
PDF
↓
Complete Digital Guide
Detailed configuration and operating guidance
| Model | ESS-LB16-W01 |
|---|---|
| Product Type | Low-Voltage Energy Storage Battery System |
| Battery Chemistry | LiFePO₄ |
| Nominal Energy | 16.08kWh |
| Usable Energy | Approximately 14.4kWh |
| Capacity | 314Ah |
| Nominal Voltage | 51.2V |
