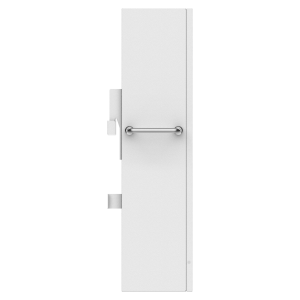

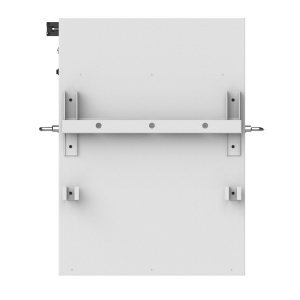

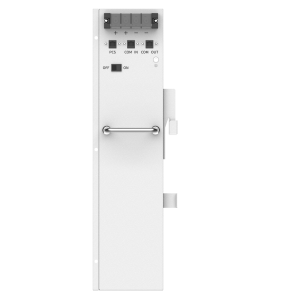

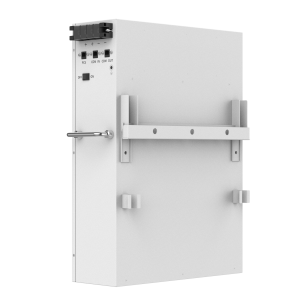

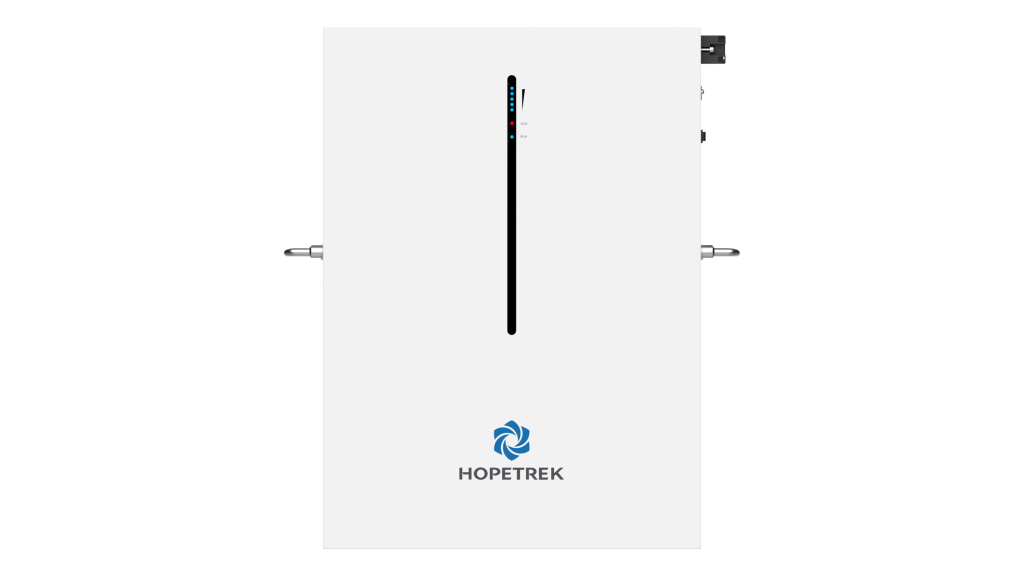

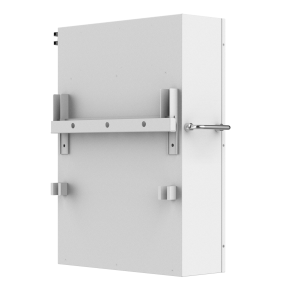

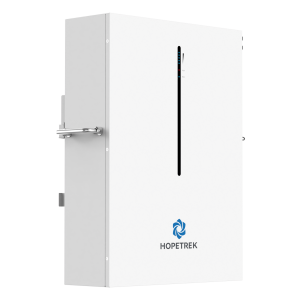

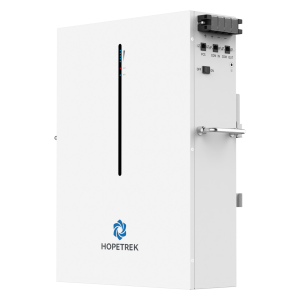

5.12kWh Wall-Mounted LiFePO₄ Battery System (ESS-LB5-W01)
The HopeTrek ESS-LB5-W01 is a 5.12kWh wall-mounted LiFePO₄ battery system with a 51.2V nominal voltage, 100Ah capacity and approximately 4.6kWh usable energy. It features an intelligent BMS, at least 6,000 cycles, CAN communication and modular expansion supporting up to 16 battery packs in parallel.
ESTIMATED PRICE
Original price was: ₨ 270,000.₨ 229,500Current price is: ₨ 229,500.
/ Unit
SELECT QUANTITY
Product Information
Smart and Reliable Energy Storage for Modern Properties
The HopeTrek ESS-LB5-W01 is a compact 5.12kWh low-voltage LiFePO₄ battery system designed for residential and commercial energy storage. Its intelligent Battery Management System monitors charging, discharging, cell voltage and current to provide safer, stable and efficient operation. The wall-mounted modular design saves space and supports parallel expansion as your energy requirements increase.
| 5.12kWh Energy Capacity | Provides 5.12kWh nominal energy and approximately 4.6kWh usable energy at 90% depth of discharge. |
| Safe LiFePO₄ Chemistry | Lithium iron phosphate battery chemistry provides stable performance and enhanced operational safety. |
| Intelligent Battery Management | The intelligent BMS manages charging, discharging and cell balancing while monitoring system conditions. |
| Extended Cycle Life | Delivers at least 6,000 cycles under the specified test conditions at 90% depth of discharge. |
| Modular Expansion | Supports up to 16 battery packs connected in parallel for scalable energy storage. |
| High Usable Capacity | A recommended 90% depth of discharge helps provide approximately 4.6kWh of usable energy. |
| Inverter Communication | CAN communication enables coordinated operation with a compatible energy-storage inverter. |
| Clear Status Indicators | LED indicators show the battery state of charge, working status and alarm conditions. |
| Space-Saving Installation | Its compact wall-mounted construction saves floor space and supports clean installation. |
| Residential and Commercial Use | Suitable for compatible residential and commercial low-voltage energy-storage systems. |
PDF
↓
Product Datasheet
Features and technical specifications
PDF
↓
Quick Installation Guide
Installation and initial setup instructions
PDF
↓
Complete Digital Guide
Detailed configuration and operating guidance
| Model | ESS-LB5-W01 |
|---|---|
| Product Type | Low-Voltage Wall-Mounted Battery System |
| Battery Chemistry | LiFePO₄ |
| Nominal Energy | 5.12kWh |
| Usable Energy | Approximately 4.6kWh |
| Capacity | 100Ah |
| Nominal Voltage | 51.2V |
