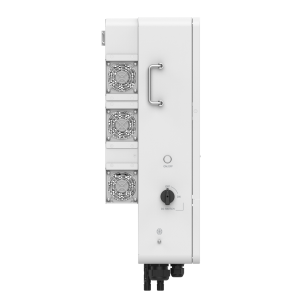

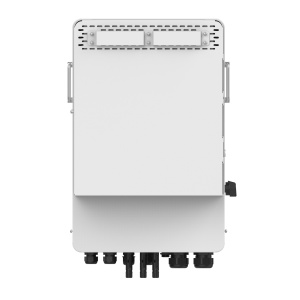

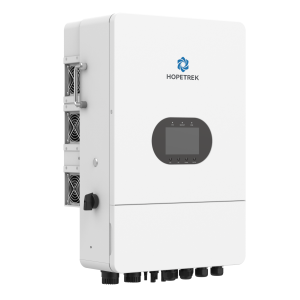

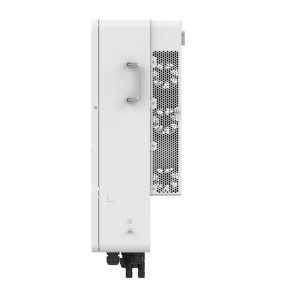

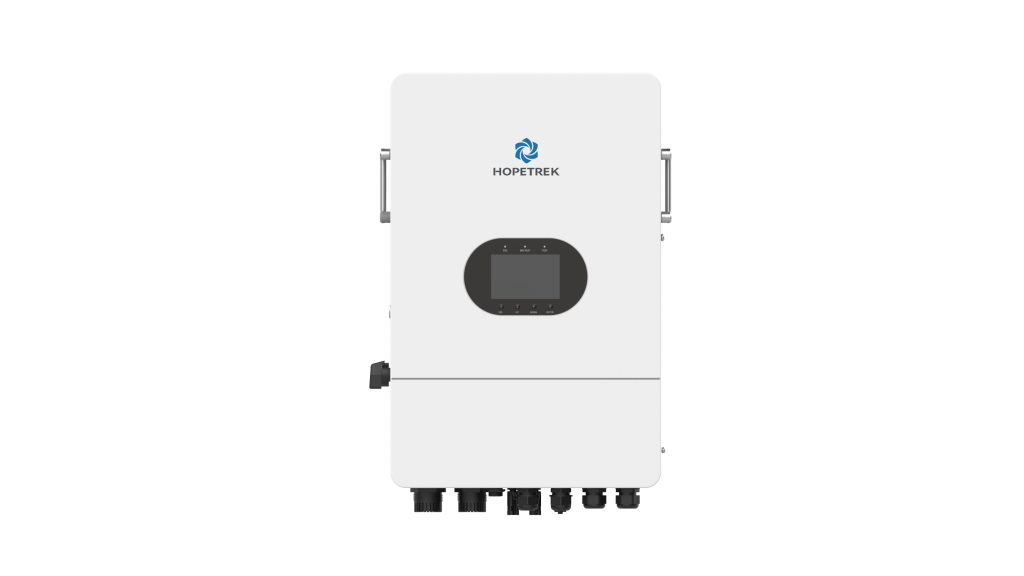

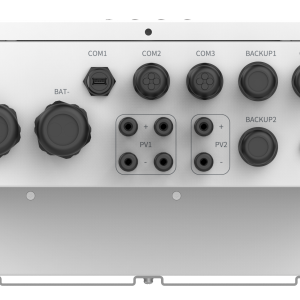

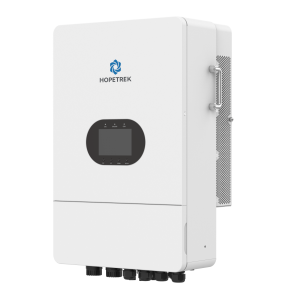

Three-Phase 12kW Low-Voltage Hybrid Inverter (SUN-TL-HP12K-A1)
The HopeTrek SUN-TL-HP12K-A1 is a three-phase 12kW low-voltage hybrid inverter supporting on-grid and off-grid operation, up to 19.2kW solar input, dual MPPT tracking and compatible 40V–60V batteries. It offers powerful backup performance, unbalanced load support, LCD and application monitoring, and IP66 protection.
ESTIMATED PRICE
Original price was: ₨ 529,000.₨ 470,000Current price is: ₨ 470,000.
/ Unit
SELECT QUANTITY
Product Information
Powerful Three-Phase Energy Management with Low-Voltage Battery Support
The HopeTrek SUN-TL-HP12K-A1 is a powerful three-phase 12kW hybrid inverter designed for larger residential and light commercial solar systems. It intelligently manages power from solar panels, the utility grid and compatible low-voltage batteries. High solar-input capacity, dual MPPT tracking, powerful backup output and intelligent monitoring provide flexible and dependable energy management.
| 12kW Three-Phase Output | Delivers 12,000W rated three-phase output for compatible residential and commercial loads. |
| On-Grid and Off-Grid Operation | Operates with the utility grid while also providing backup power to compatible loads during outages. |
| 19.2kW Solar Input | Supports up to 19,200W photovoltaic input for effective use of larger solar-panel installations. |
| Dual MPPT Tracking | Two independent MPPT trackers and three string inputs support flexible solar-array configurations. |
| Low-Voltage Battery Support | Supports compatible 40V to 60V lithium-ion or lead-acid batteries with charging and discharging current up to 240A. |
| Powerful Backup Output | Provides 12kW rated backup output and peak output of up to 24,000VA for 60 seconds. |
| Fast Backup Switching | A 10ms switching time helps maintain power to compatible backup loads during a grid interruption. |
| Unbalanced Load Support | Supports unbalanced three-phase loads, with each phase supporting up to 50% of the rated output power. |
| High Conversion Efficiency | Provides maximum efficiency of 97.6% and MPPT efficiency of 99.9%. |
| Smart Monitoring | Monitor system performance through the LCD screen and application using Bluetooth, Wi-Fi or LAN. |
| Comprehensive Protection | Integrated safeguards include anti-islanding, reverse polarity, ground fault, residual current, overcurrent, short circuit, overvoltage and thermal protection. |
| IP66 Protection | The IP66-rated enclosure protects the inverter against dust and water ingress in suitable installations. |
Product documents will be available soon.
| Model | SUN-TL-HP12K-A1 |
|---|---|
| Product Type | Three-Phase Low-Voltage Hybrid Inverter |
| Rated AC Output Power | 12,000W |
| Maximum AC Apparent Power | 13,200VA |
| Grid Type | Three phase |
| Rated AC Voltage | 220V/380V or 230V/400V, 3L/N/PE |
